CY2173 Sapphire Wafer

Catalog No. CY2173
Material Al2O3
Thickness 430mm, 0.5mm, 1mm
Thermal Conductivity 46 W/mk
Dielectric constant 11.58
Diameter 1", 2", 3", 4", 5"

Datasheet

Inquiry

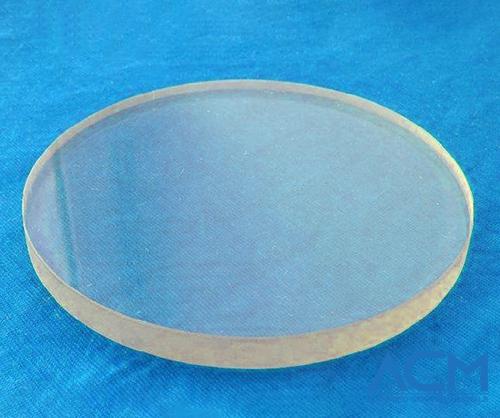

CY2173 Sapphire Wafer

Sapphire Wafer Description

Compared to other wafers, the sapphire wafer has many unique features such as high strength, anti-corrosion, anti-abrasion, good thermal conductivity, and good electrical isolation. Due to its excellent mechanical and chemical characteristics, the sapphire wafer plays an important role in the optoelectronics industry and is widely used in precision mechanical parts and vacuum equipment.

Sapphire Wafer Specifications

Growth	Kyroplous
Diameter	Ø 1" /Ø 2" / Ø 3" / Ø 4"/ Ø5"

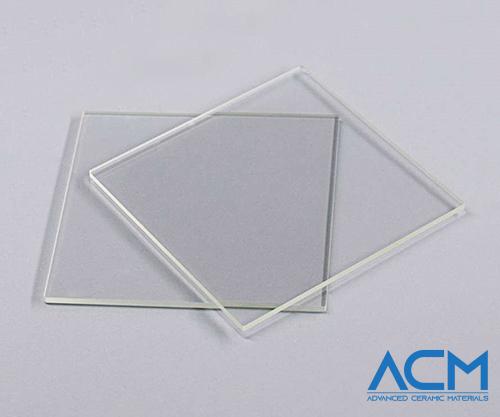

Size	10 x 10 / 20 x 20 / 50 x 50 / 100 x 100 mm
Thickness	0.43 mm / 0.5 mm / 1 mm
Surface	one side / two sides epi polished
Roughness	Ra ≤ 5 A
Package	Single wafer container or Ampak cassette

Chemical formula	Al2O3
Crystal structure	Hexagonal
Lattice constant	4.77 A
Hardness	9
Thermal conductivity	46 W / mk
Dielectric constant	11.58
Refractive index	1.768
