ZTA6071 Zirconia Toughened Alumina (ZTA) Bead

Catalog No. ZTA6071
Main Compositions Alumina, Zirconia
Diameter 0.8mm-5mm
Form Bead
Minimum Order Quantity (MOQ) 25kg/Package

Inquiry

ZTA6071 Zirconia Toughened Alumina (ZTA) Bead

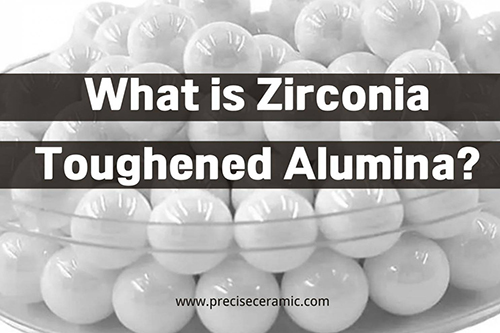

Zirconia Toughened Alumina (ZTA) Beads Overview

Zirconia Toughened Alumina (ZTA) Beads are advanced ceramic grinding media designed for use in a variety of milling and grinding applications, especially where precision, efficiency, and material purity are essential. These beads are composed primarily of alumina, with zirconium oxide added as a toughening agent. Manufactured through a specialized rolling and high-temperature sintering process, ZTA beads are ideal for dispersing and grinding medium to low viscosity materials in disc sand mills. As a cost-effective zirconium-based grinding media, they are particularly well-suited for the dispersion and grinding of non-metallic materials.

Zirconia Toughened Alumina (ZTA) Bead Specification

Specific Gravity	3.6kg/dm³
Bulk Density	>2.1kg/L
Mohs Hardness	8
Vickers hardness	1100kg/mm²
Compressive strength	900N(2mm)
Sphericity	96%
Packaging	25kg/drum

Chemical Composition

Composition	Al2O3	ZrO2	Others
Wt%	85	10	5

Specification

Model	Diameter (φ) mm
NZC8	0.8-1.2
NZC12	1.2-1.5
NZC14	1.4-1.7
NZC15	1.5-2.0
NZC20	2.0-2.5
NZC25	2.5-3.0
NZC30	3.0-3.5
NZC35	3.5-4.0
NZC40	4.0-4.5

*Sizes can be tailored to meet specific customer requirements.

Zirconia Toughened Alumina (ZTA) Bead Applications

Milling and Grinding: ZTA beads are widely utilized in ball mills, attritors, and other grinding machines for breaking down hard and abrasive materials, including minerals, ceramics, and various powders.
Paints, Inks, and Coatings: These beads play a crucial role in achieving fine and ultra-fine dispersions in the production of paints, inks, and coatings.
Pharmaceuticals and Cosmetics: Thanks to their high purity and minimal contamination risk, ZTA beads are ideal for grinding pharmaceutical and cosmetic products.
Advanced Ceramics Manufacturing: ZTA beads are also essential in the production of advanced ceramics, where precision and consistency of materials are vital.
