SC5622 Silicon Carbide Crucible

  • Catalog No. SC5622
  • Material SiC
  • Max. Temperature 1600 ℃
  • Density 3.0-3.2 g/cm3
  • Size Customized

SC5622 Silicon Carbide Crucible

sc/1712478981-normal-21-sic-crucible.jpg
sc/1712478981-normal-21-sic-crucible.jpg

Silicon Carbide Crucible Description

Silicon Carbide Crucible is a robust, high-efficiency vessel engineered to endure severe temperatures and aggressive chemical conditions. It is widely utilized in fields such as metallurgy, foundry operations, and research in materials science for the melting and containment of metals and various materials. Crafted from silicon carbide, a blend of silicon and carbon, this crucible merges the thermal conductivity typical of metals with the superior temperature resistance and robustness characteristic of ceramics.

Silicon Carbide Crucible Specifications

Compound Formula

SiC

Molecular Weight

40.1

Appearance

Dark brown to black crucible

Melting Point

2,730℃

Density

3.0 to 3.2 g/cm3

Tensile Strength

210 to 370 MPa (Ultimate)

Thermal Conductivity

120 to 170 W/m-K

Thermal Expansion

4.0 to 4.5 µm/m-K

Young's Modulus

370 to 490 GPa

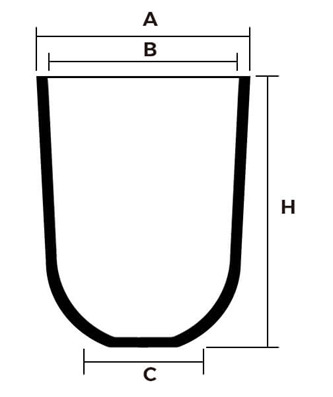

Available Sizes

A ± 5mm

B ± 5mm

C ± 10mm

H ± 10mm

170

130

115

220

170

130

115

260

205

162

130

265

240

200

170

335

270

210

180

335

290

230

225

340

295

240

225

400

305

248

150

345

310

255

170

345

For more specifications, please contact us.

Silicon Carbide Crucible Applications

  • Metal Processing and Casting: In the field of metallurgy, SiC crucibles are prized for their capacity to melt both ferrous and non-ferrous metals, thanks to their resilience against high temperatures and corrosive slags.
  • Glass and Ceramics Creation: These crucibles are ideal for the high-temperature melting and handling of substances needed in the production of glass and ceramics, where resistance to chemicals is crucial.
  • Laboratory Chemical Analysis: Silicon carbide crucibles are essential in lab settings for conducting chemical analyses and experiments at elevated temperatures, ensuring accuracy and a contamination-free environment.
  • Powder Metallurgy: These crucibles are key in the sintering and melting of metal and ceramic powders, playing a significant role in the creation of cutting-edge materials.
  • Energy Sector Applications: Their ability to withstand extreme temperatures makes them apt for use in certain reactor types and processing materials for energy-related applications, including those in the nuclear field.

Silicon Carbide Crucible Packaging

Our Silicon Carbide Crucible is carefully handled during storage and transportation to preserve the quality of our product in its original condition.
